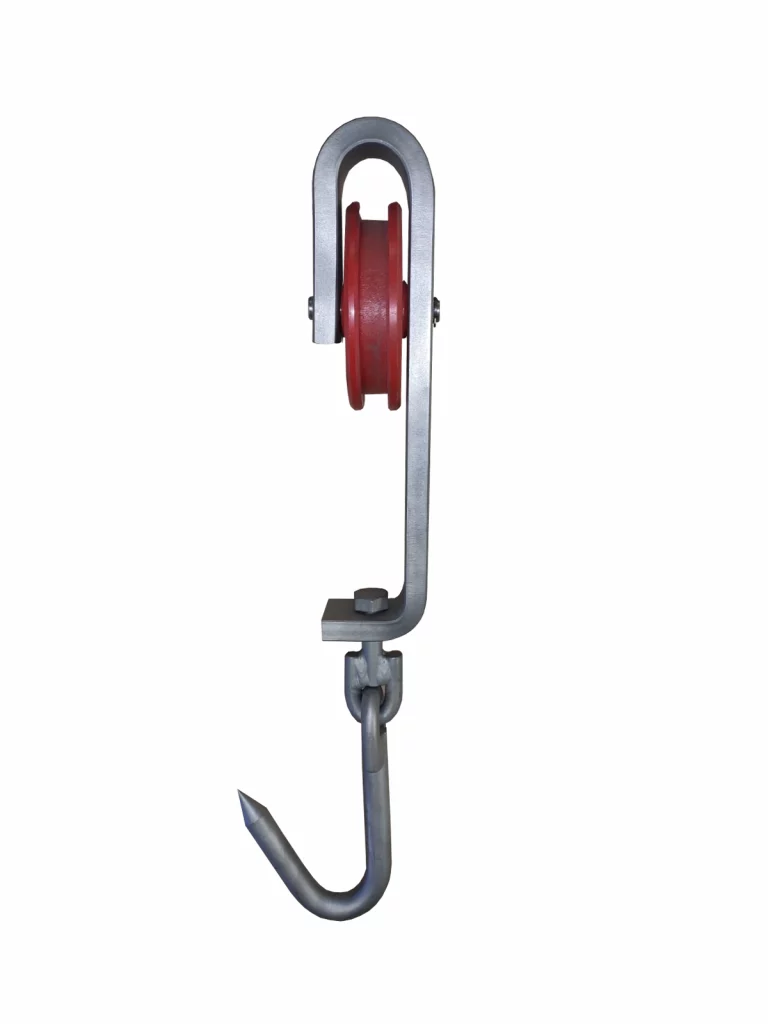

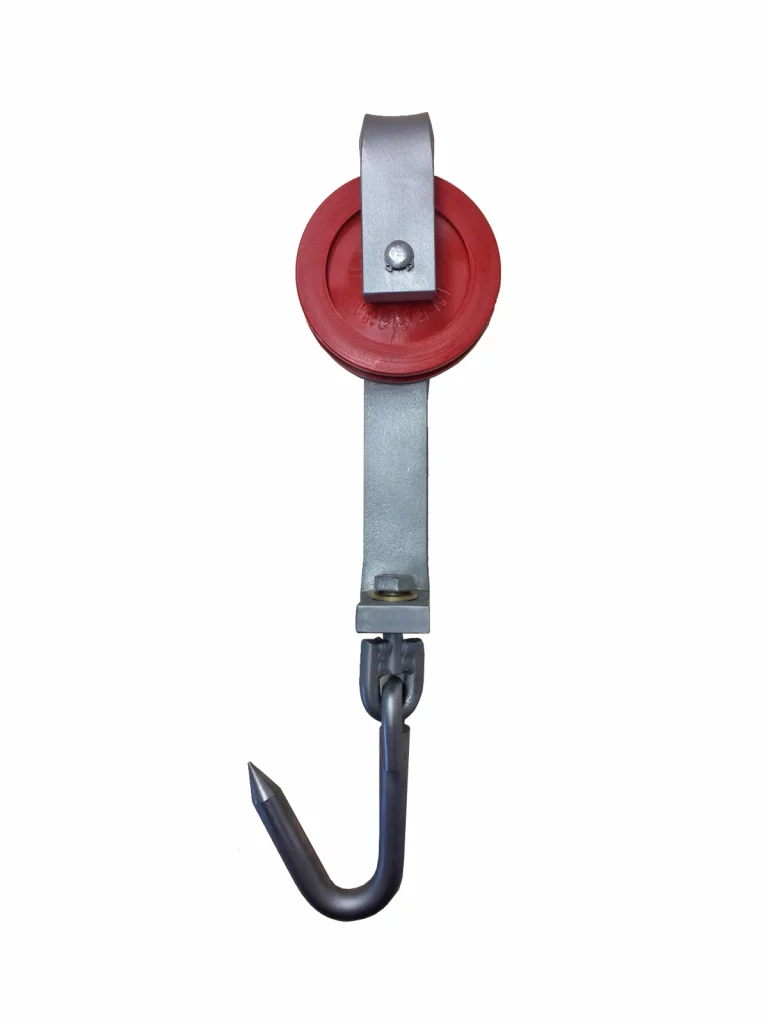

Functionality of the Flat-Track Trolley or Sheave

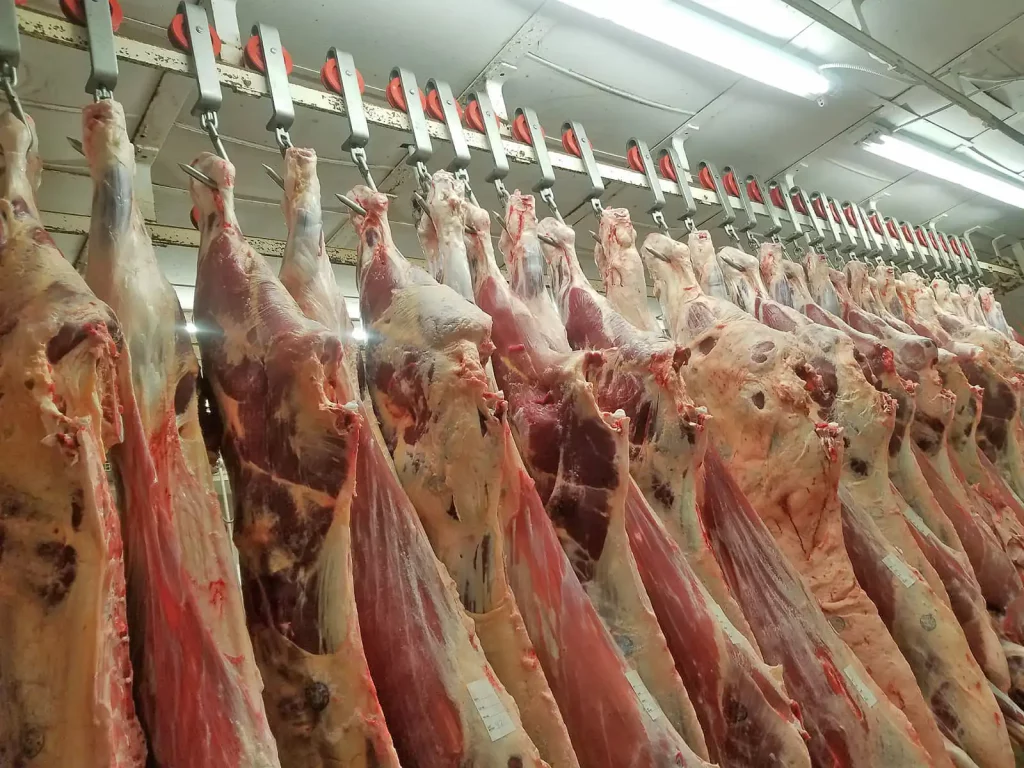

The Flat-Track Trolley or Sheave is used in flat-track railing in slaughterhouses, cutting plants and processing and sausage factories. They are made entirely of stainless steel, which makes them more hygienic and durable. The wheel is made of cutting-edge plastic material, completely resistant. The sheave as a whole is highly resistant to impacts and wear due to friction. Hooks of different diameters can be attached to them, with or without a swivel, and gambrel.
Advantages of our Flat-Track Trolley or Sheave
- Different dimensions to adjust to your needs and budget.
- The plastic wheel avoids the need for lubrication of the platen.
- There is no precipitation of metal chips on the carcass.
- They don’t rust.
- Lighter compared to conventional ones.
- Greater durability.
- Simple cleaning and sterilization.
- Withstands temperatures between -22ºC and +200ºC.
Technical specifications
of our flat-track trolley for meat
Body of the folded platen in AISI-304 stainless steel of European manufacturing and regulations

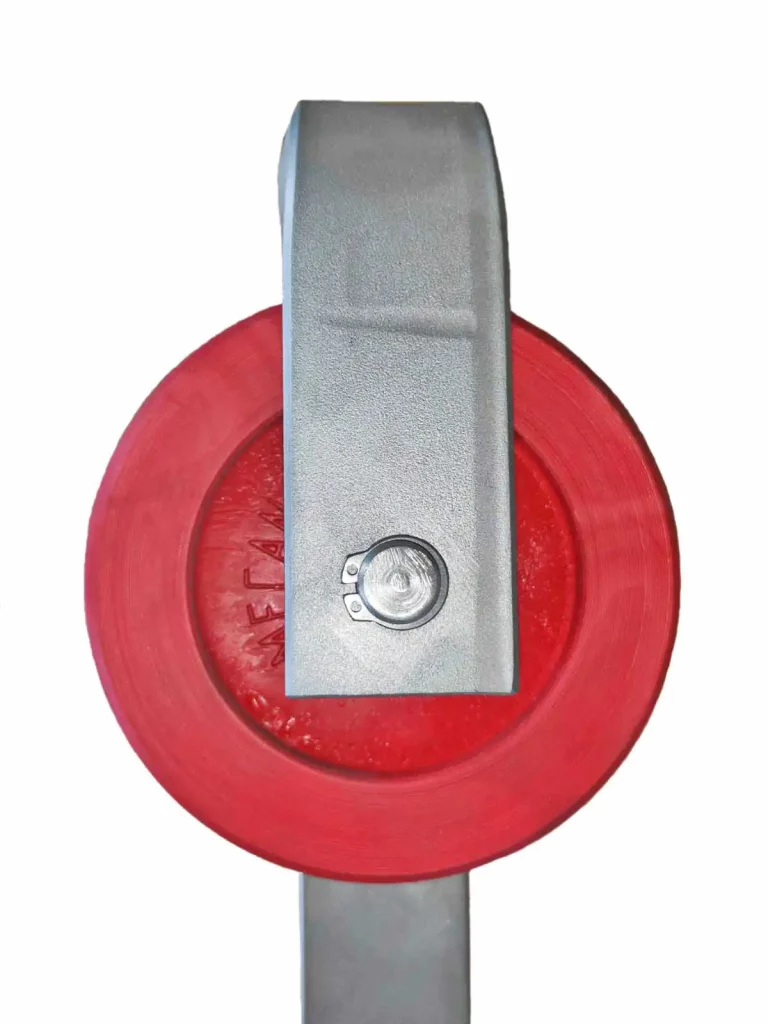

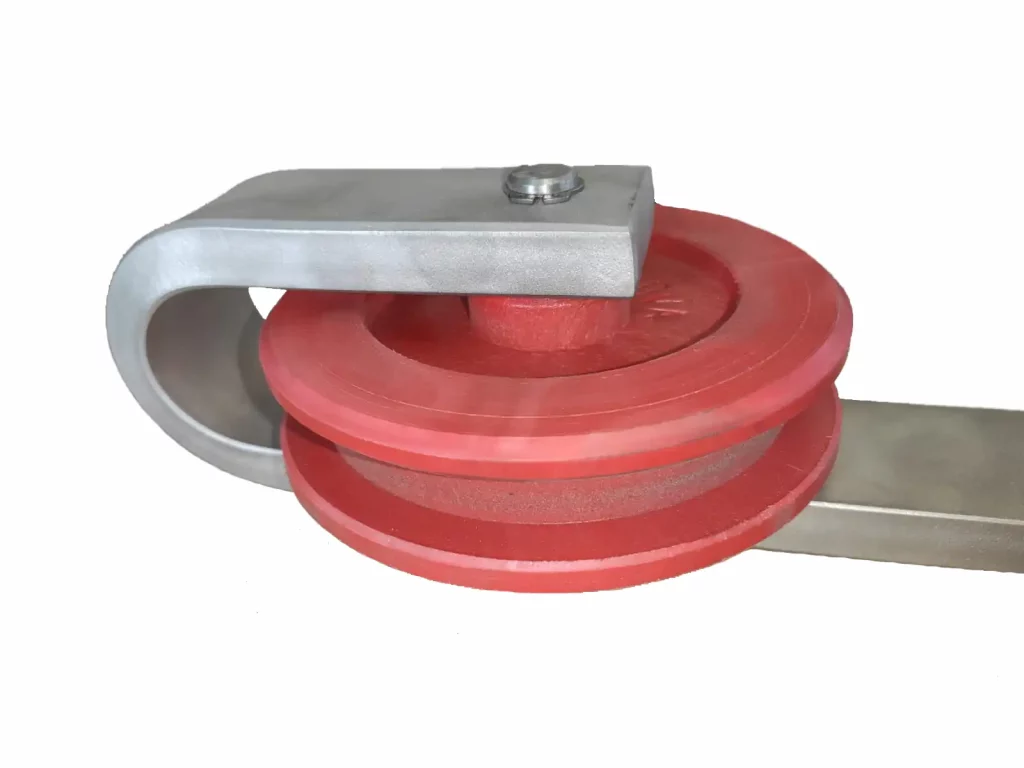

Polyamide wheel with high resistance to friction and impact
AISI-304 Stainless steel shaft of European manufacture
| SMALL | MEDIUM | HD | XL HD | |
| Total length, including hook | 450 mm | 500 mm | 500 mm | 505 mm |
| Width of the platen | 40 mm | 40 mm | 50 mm | 40 mm |
| Platen thickness | 10 mm | 12 mm | 12 mm | 15 mm |
| Wheel diameter | 100 mm | 100 mm | 120 mm | 120 mm |
| Recommended hook | 14 mm | 16 mm | 18 mm | 18 mm |
| Static load capacity | 236 kg | 236 kg | 540 kg | 540 kg |
| Dynamic load capacity | 540 kg | 540 kg | 1140 kg | 1140 kg |
Data Sheet
If you need more information you can download our data sheet by clicking on the corresponding button.
Ask for a quote
If you are interested in this product, fill out the form below or call the phone number below.
+34 925 743 404
